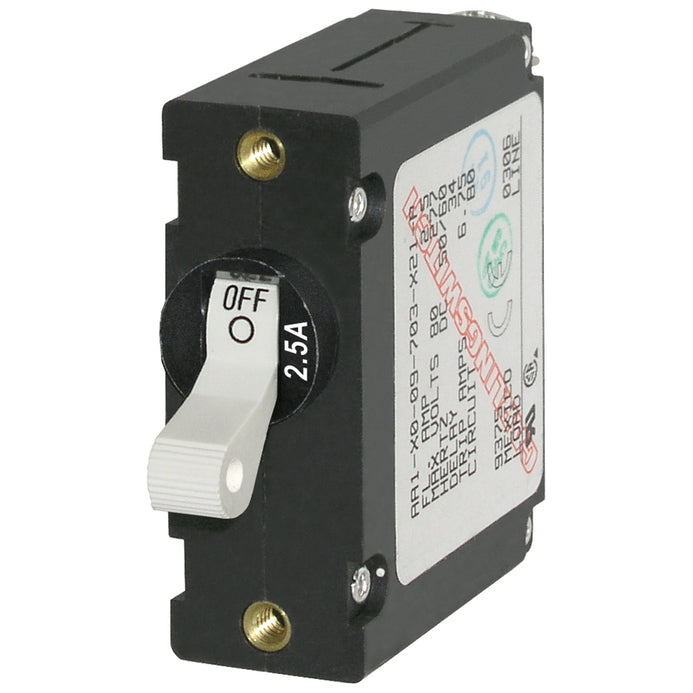

Blue Sea 7197 A-Series White Toggle Circuit Breaker - Single Pole 2.5A
$38.98
You Save: (%)
This product was viewed times within last hour
Availability: Sold out
A-Series White Toggle Circuit Breaker - Single Pole 2.5A
Specifications:
Manufacturer : Blue Sea Systems
Manufacturer Part No : 7197
UPC : 632085071974
- Meets American Boat and Yacht Council (ABYC) standards
- The industry standard circuit breaker for Blue Sea Systems" electrical panels
- Combines swtiching and circuit protection into a single device
- "Trip Free" design cannot be held "ON" during fault current condition
Specifications:
- Amperage: 2.5A AC / 2.5A DC
- Color: White
- Actuator Style: Toggle
- Poles: 1
- Maximum Voltage: 250V AC / 65V DC
- Circuit Breaker Type: Magnetic Hydraulic - trip free
- Interrupt Capacity: 3000A @ 120V AC / 1500A @ 250V AC [TUV] / 3000A @ 250V AC [UL 1077] / 7500A @ 65V DC
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw: #6-32 Stainless Steel
- Mounting Screw Torque: 6 in-lb (0.68 Nm)
- Screw Terminal Torque: 14 in-lb (1.58 Nm)
- Switching Cycles: 10000
- Terminal Screw: #10-32 Stainless Steel
- Weight: 0.17lb (0.08 kg)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Blue Sea Systems
Manufacturer Part No : 7197
UPC : 632085071974
