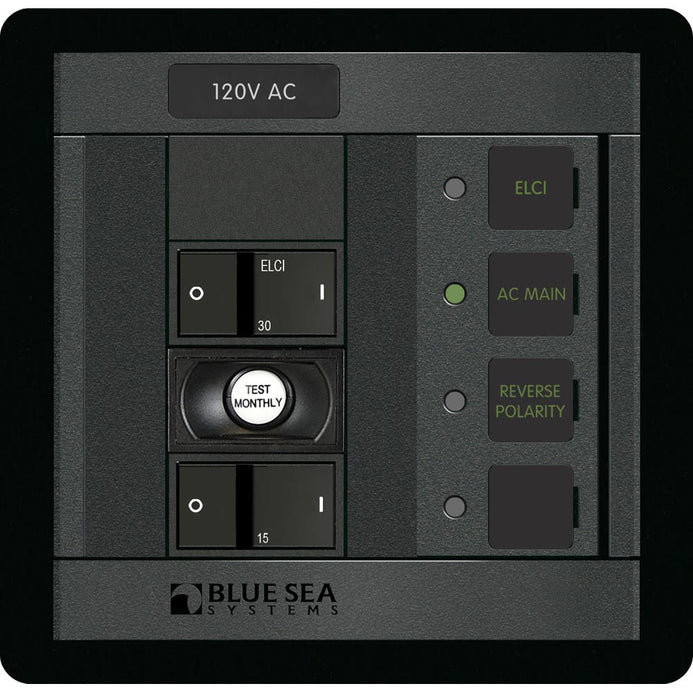

Blue Sea 1190 ELCI Main 30A Double Pole + 1 Position
$894.98
You Save: (%)
This product was viewed times within last hour
Availability: In stock
ELCI Main 30A Double Pole + 1 Position
Features:
Specifications:
Includes:
(1) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
*Green LEDs (Circuit Breaker Panels only) aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position
Manufacturer : Blue Sea Systems
Manufacturer Part No : 1190
UPC : 632085011901
Features:
- One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
- ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
- One 15A AC Branch Flat Rocker Circuit Breaker
- Red " Reverse Polarity" LED
- Includes 4206 AC Panel Basic Square Format Label Set
- All circuit label positions are backlit
- "ON" indicating LEDs
Specifications:
-
Positions: 1
-
Nominal Voltage: 120V AC
-
Backlit Label*: Green LED
-
Height: 4.75" (120.65mm)
-
Width: 4.88" (123.95mm)
-
Depth: 3.99" (101.35mm)
- Weight: 1.00lb (0.45kg)
Includes:
(1) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
*Green LEDs (Circuit Breaker Panels only) aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Blue Sea Systems
Manufacturer Part No : 1190
UPC : 632085011901
