Blue Sea 5045 ST Blade Compact Fuse Blocks - 4 Circuits w/Cover
$55.98
You Save: (%)
This product was viewed times within last hour
Availability: In stock

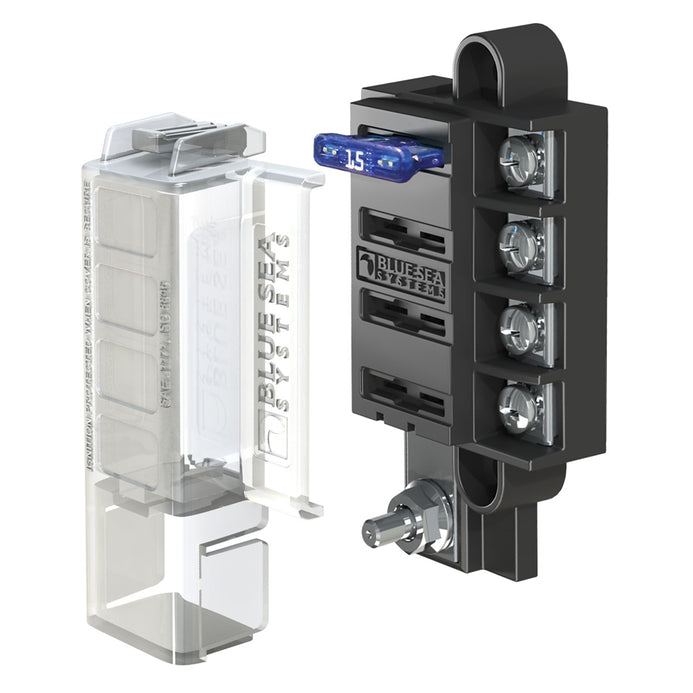

ST Blade Compact Fuse Blocks - 4 Circuits w/Cover
Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.
Specifications
Manufacturer : Blue Sea Systems
Manufacturer Part No : 5045
UPC : 632085050450
Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.
- Compact common source fuse block
- Accepts ATO® and ATC® fast acting blade fuses
- Single side entry wiring
- Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
- Insulating cover meets ABYC/USCG insulation requirements
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Small format standard and custom labels available
Specifications
-
Circuits:4
-
Maximum Amperage: 100A per block / 30A per circuit
-
Maximum Voltage:32V DC
-
Mounting: #8 Screw (M4)
- Screw Terminal Torque:#8-32 Screws with captive star lock washer in-lb (0 Nm)
