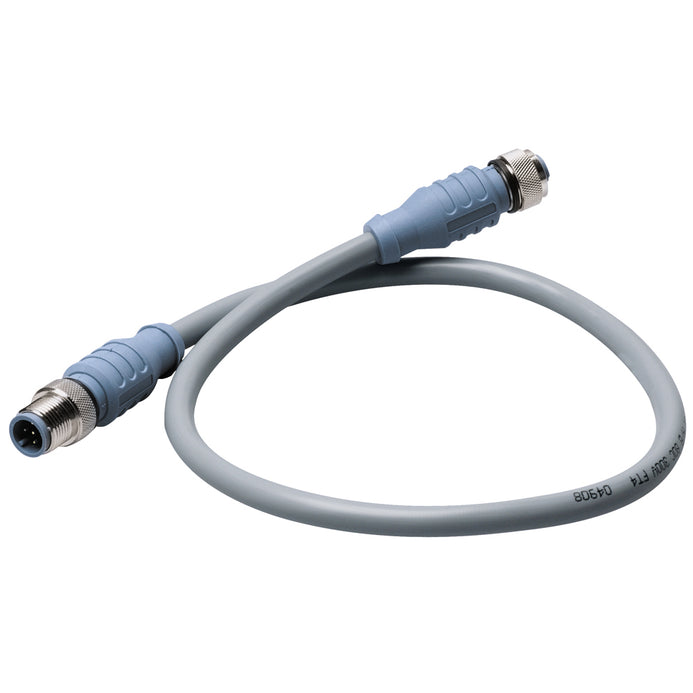

    Maretron Micro Double-Ended Cordset - 10 Meter

    Maretron Micro Double-Ended Cordset - 1 Meter Maretron Micro Double-Ended Cordset - 10 Meter Maretron Micro Double-Ended Cordset - 2 Meter
    Sold out
    Sale
    $100.06
    You Save: (%)
    This product was viewed times within last hour

    Availability: Sold out

      Mechanical

    • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
    • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
    • Contact Mat/Plating: Brass/Gold
    • Coupling Nut Mat/Plating: Brass/Nickel
    • Connector Outside Diameter: 0.59"
      Electrical
    • Current Rating: 4.0 Amps
    • Voltage Rating: 250 V
      Cable
    • Outer Jacket Mat/Color: PVC/Gray
    • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
    • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
    • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
      Environmental
    • Protection Class: IEC IP68, NEMA 1,3,4,6P
    • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
      Approvals
    • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
      AWM 80 deg C 300V
    • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
      AWM I/II A/B 80C 300V FT4
    • NMEA: NMEA 2000 Approved

      Specifications:

      • Data Interface: NMEA 2000
      • Cable Length (Feet): 33'
      • Box Dimensions: 3"H x 7"W x 7"L WT: 1.5 lbs
      • UPC: 873804001609
