Wichard HR D Shackle - Diameter 15/64"
$101.98
You Save: (%)
This product was viewed times within last hour
Availability: In stock

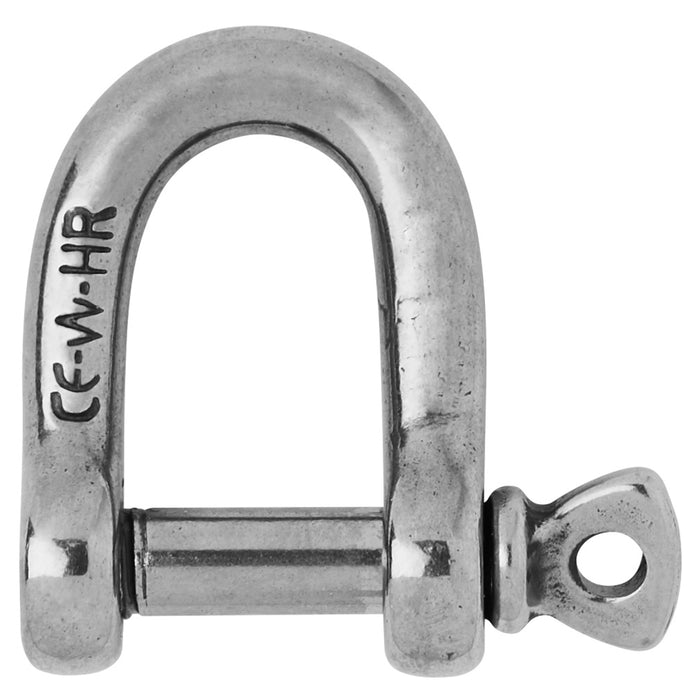

HR D Shackle - Diameter 15/64"
Features:
- Forged D shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications
- Applications requesting high loads
- Standard applications of the shackle
- Attachment applications: blocks, head
- Do not use it for mooring applications
Specifications:
- Materials HR 17.4 PH stainless steel grade
- Working load (lb) 2290
- WLL (lb) 1010
- Breaking load (lb) 5070
- Weight (lb) 0.053

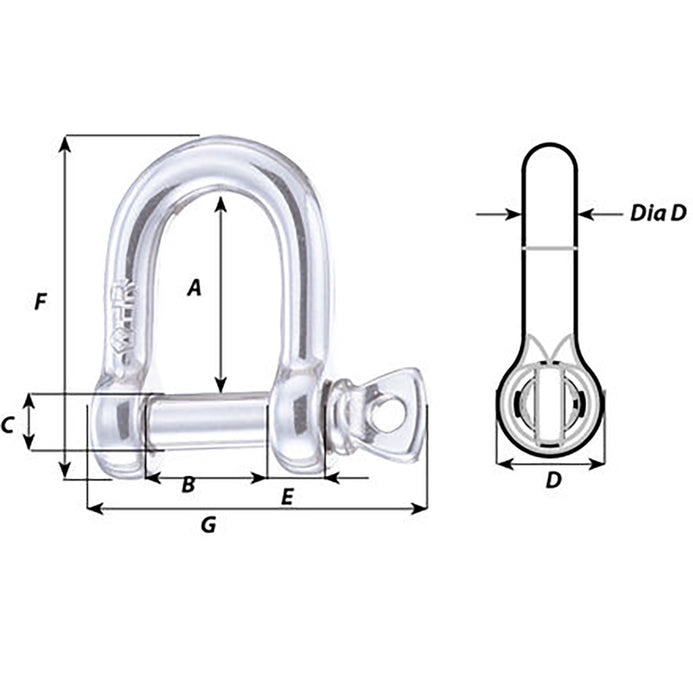

- A (inch) 25/32"
- B (inch) 15/32"
- C (inch) 15/64"
- D (inch) 5/8"
- D diameter (inch) 15/64"
- E (inch) 9/32"
- F (inch) 1 13/16"
- G (inch) 1 13/16"
Manufacturer : Wichard Marine
Manufacturer Part No : 11204
UPC : 768536112047
