Airmar B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin

Airmar B117 Bronze 0° Depth & Temp w/Ray Connector f/CP370 & DSM300 Airmar B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin Airmar B117 Traditional/CW Thru‑Hull 50/200kHz, 600W, Transducer, 9-Pin, DT f/Simrad, Lowrance & B&G
Sold out
Sale
$423.98
You Save: (%)
This product was viewed times within last hour

Availability: Sold out

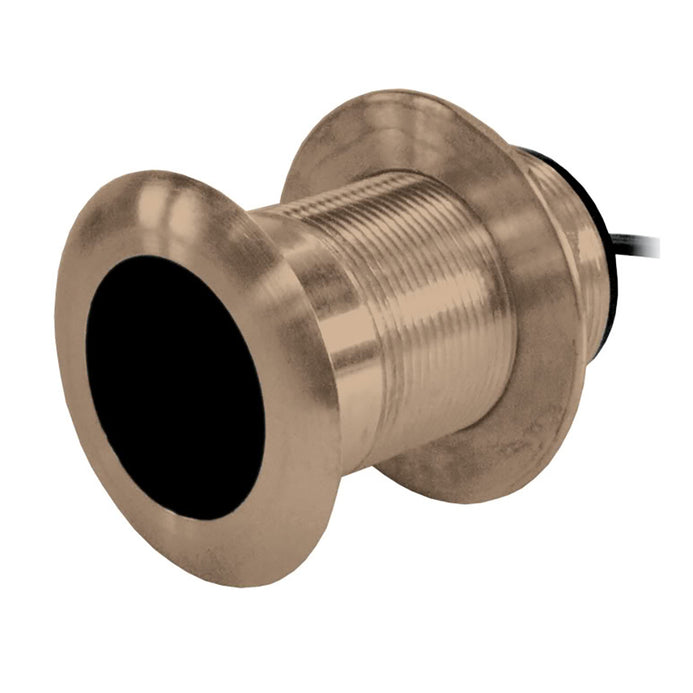

B117 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin

The B117 features our 50/200 kHz, dual-frequency, single ceramic element in a low-profile housing. The nearly-flush design minimizes drag with only 5mm (3/16") extending outside of the hull. The plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials.

Features

  • Industry standard for low-profile transducers
  • Depth and temperature
  • Good target detail in shallow-water at 200 kHz and good deep-water bottom tracking at 50 kHz
  • Right angle cable exit offers low headroom and protection when transducer is stepped on
  • Included rubber washer allows tightening of the hull nut to irregular hull surfaces
  • Housings are ABYC H-27 compliant
  • Optional temperature sensor
  • Bronze transducer housing
  • Boat Size: 8M (25') and up

Specifications:

  • Weight: Bronze - 0.9 kg (2.0 lb)
  • Hull Deadrise: Up to 8°
  • Acoustic Window: Urethane
  • Hole Diameter: 51mm (2")
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Manufacturer : Airmar
Manufacturer Part No : B117-DT-HB
