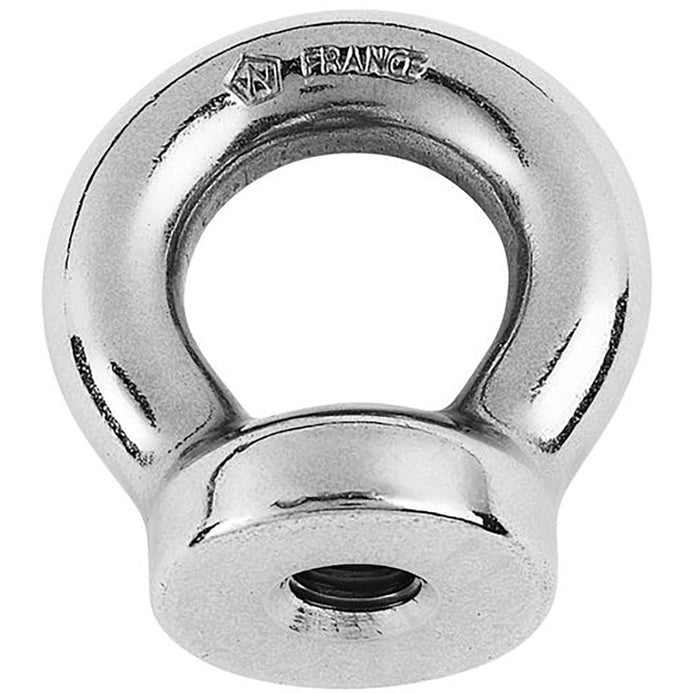

Wichard 10mm Eye Nut - Thread M10 x 150mm
$85.98
You Save: (%)
This product was viewed times within last hour
Availability: In stock
10mm Eye Nut - Thread M10 x 150mm
Features:
- A complete range of single-piece forged products for fastenings applications
- Outstanding breaking loads
- Available in different sizes
Applications:
- Various fastening applications
- Towing application
- Waterskiing lines attachment
Specifications:
- Materials: 316L stainless steel grade
- Breaking load: (lb) 10580 / (kg) 4800
- Weight: (lb) 0.218 / (g) 99

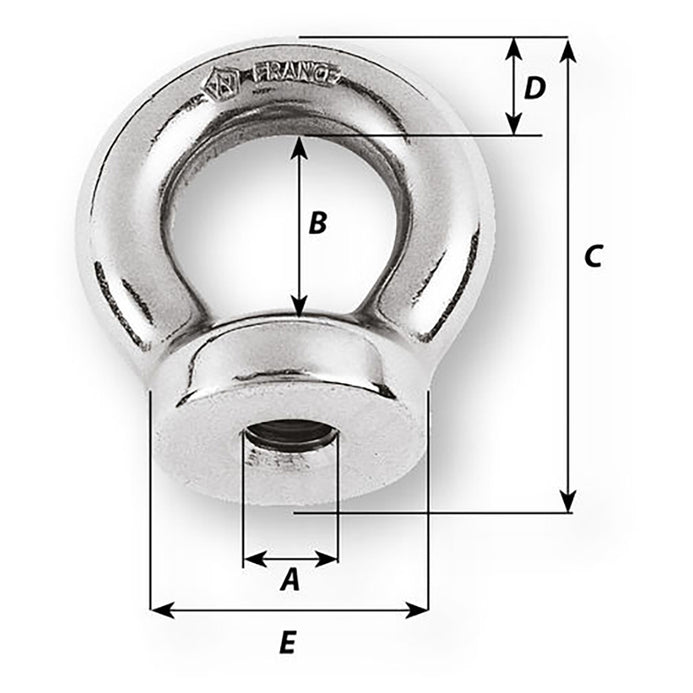

Dimensions:
- A: (mm) M10 x 150
- B: (inch) 55/64" / (mm) 22
- C: (inch) 1 13/16" / (mm) 46
- D: (inch) 25/64" / (mm) 10
- E: (inch) 1 7/64" / (mm) 28
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Manufacturer : Wichard Marine
Manufacturer Part No : 06355
