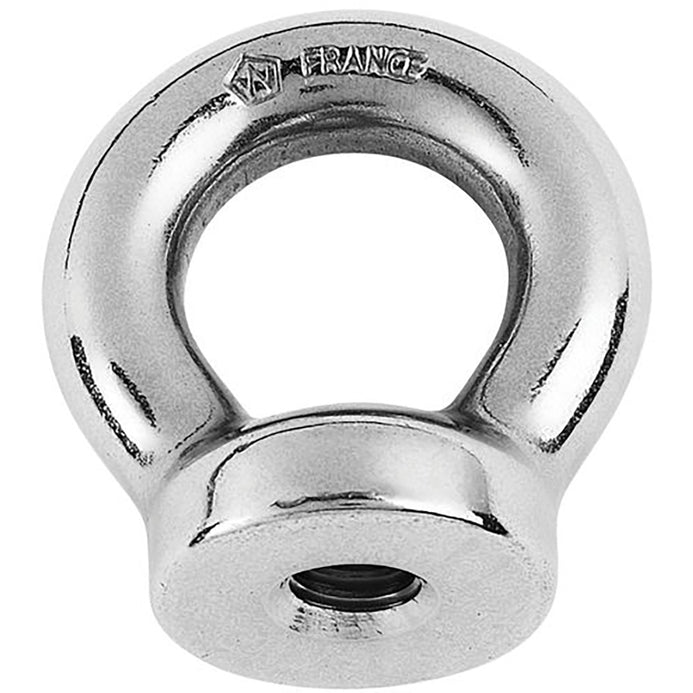

Wichard 12mm Eye Nut - Thread M14 x 200mm
$127.98
You Save: (%)
This product was viewed times within last hour
Availability: Sold out
12mm Eye Nut - Thread M14 x 200mm
Features:
- A complete range of single-piece forged products for fastenings applications
- Outstanding breaking loads
- Available in different sizes
Applications:
- Various fastening applications
- Towing application
- Waterskiing lines attachment
Specifications:
- Materials: 316L stainless steel grade
- Breaking load: (lb) 19840 / (kg) 9000
- Weight: (lb) 0.377 / (g) 171

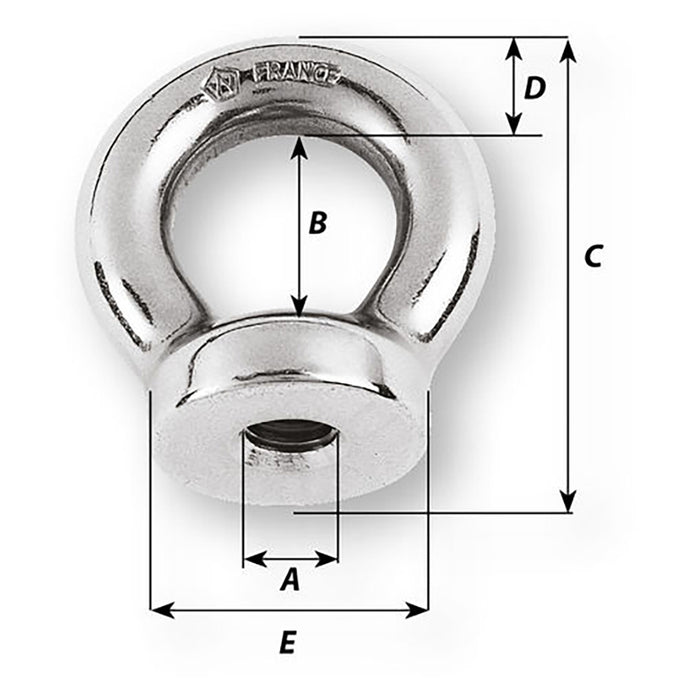

Dimensions:
- A: (mm) M14 x 200
- B: (inch) 1 1/16" / (mm) 27
- C: (inch) 2 13/64" / (mm) 56
- D: (inch) 15/32" / (mm) 12
- E: (inch) 1 11/32" / (mm) 34
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Manufacturer : Wichard Marine
Manufacturer Part No : 06367
