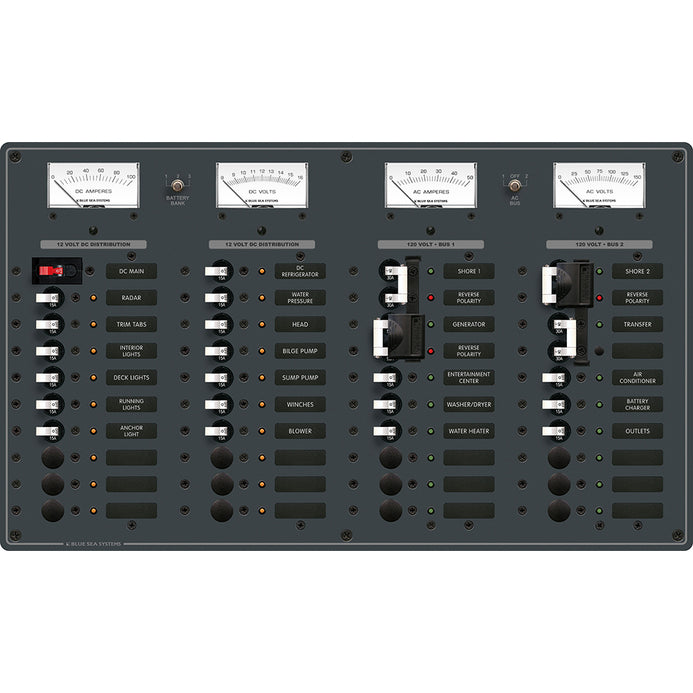

Blue Sea 8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches
$2,890.98
You Save: (%)
This product was viewed times within last hour
Availability: In stock
8086 AC 3 Sources +12 Positions/DC Main +19 Position Toggle Circuit Breaker Panel - White Switches
Features:
- Includes set of 30 common AC and 30 common DC labels
- All AC and DC buses installed, fully pre-wired
- Label backlighting pre-installed
- All LEDs installed
- Maximum panel Amperage
- 100 Amperes DC
- 50 Amperes AC
AC Features:
- Two separate AC load groups with transfer switch to combine into one load group
- Switch allows Ammeter and Voltmeter to read either AC load group
- Reverse polarity indicators on both AC load groups
- Ready for installation of optional 4031 AC Isolation Cover
- 9353, 0-150 Volt AC Voltmeter
- 9630, 0-50 Amp AC Ammeter
DC Features:
- 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
- 8003, 8-16 Volt DC Voltmeter
- 8017, 0-100 Amp DC Ammeter
Specifications:
- AC Positions: Source Selectors +12
- DC Positions: Main +19
- 120 Volts AC
- 12 Volts DC
- (3) 30A - (1) 50A - (6) 15A AC Circuit Breakers
- (1) 100A - (13) 15A DC Circuit Breakers
*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Blue Sea Systems
Manufacturer Part No : 8086
UPC : 632085080860
