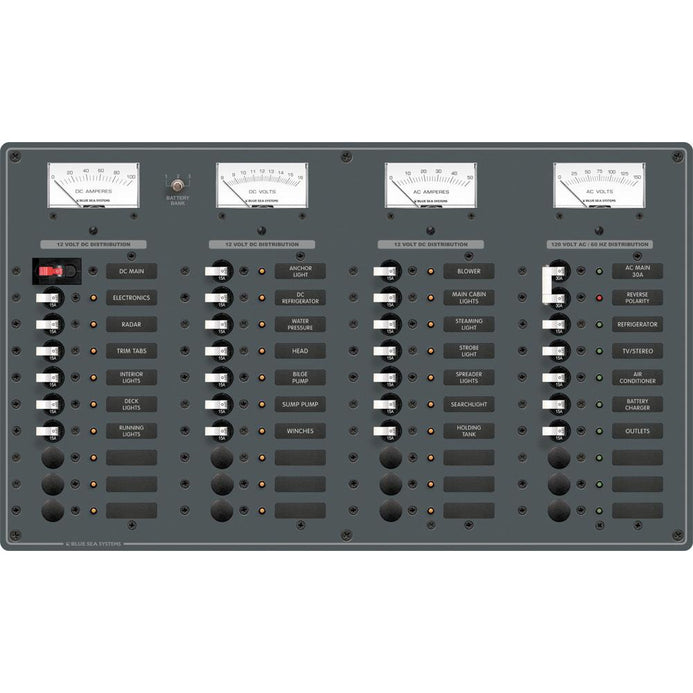

Blue Sea 8095 AC Main +8 Positions / DC Main +29 Positions Toggle Circuit Breaker Panel (White Switches)

Blue Sea 8095 AC Main +8 Positions / DC Main +29 Positions Toggle Circuit Breaker Panel (White Switches)

$2,721.98

This product was viewed times within last hour

Full Description

AC Main +8 Positions / DC Main +29 Positions

PN: 8095
White Switches

Includes set of 30 common AC and 30 common DC labels
All AC and DC buses installed, fully pre-wired
Label backlighting pre-installed
All LEDs installed
Maximum panel Amperage
- 100 Amperes DC
- 50 Amperes AC

AC Features

Red reverse polarity indicating LED
9353, 0-150 Volt AC Voltmeter
9630, 0-50 Amp AC Ammeter

DC Features

100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
8003, 8-16 Volt DC Voltmeter
8017, 0-100 Amp DC Ammeter
Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter

Specifications:

AC Positions: Source Selectors +8
DC Positions: Main +29
120 Volts AC
12 Volts DC
(1) 30A - (5) 15A AC Circuit Breakers
(1) 100A - (20) 15A DC Circuit Breakers

Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
