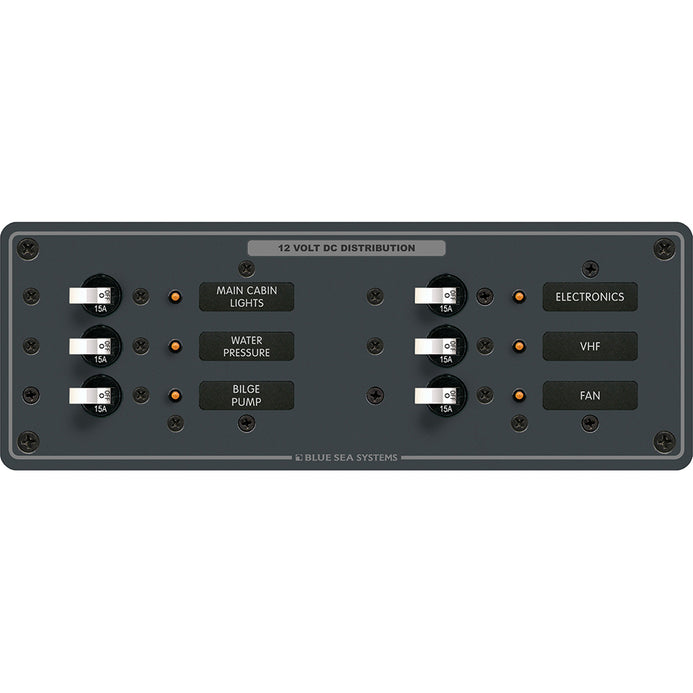

Blue Sea 8096 DC 6 Position Toggle Branch Circuit Breaker Panel - White Switches

Blue Sea 8096 DC 6 Position Toggle Branch Circuit Breaker Panel - White Switches

$510.98

This product was viewed times within last hour

Full Description

8096 DC 6 Position Toggle Branch Circuit Breaker Panel - White Switches

Features:

All positive, negative and grounding buses installed, fully pre-wired
Panels with meters include toggle switch for mounting up to 3 battery banks
All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
All circuit label positions are backlit on standard panels - No kit required
"ON" indicating LEDs installed in all circuit positions

Specifications:

Positions: 6
Nominal Voltage: 12v/24v
Maximum Amperage: 100A per bus
Height: 3.75"
Width: 10.5"
Depth: 2.5"

Included:

(6) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A
(1) 8030 Basic DC Panel Label Set - 30 Labels

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
