Wichard Captive Pin Long D Shackle - Diameter 10mm - 13/32"
$139.98
You Save: (%)
This product was viewed times within last hour
Availability: In stock

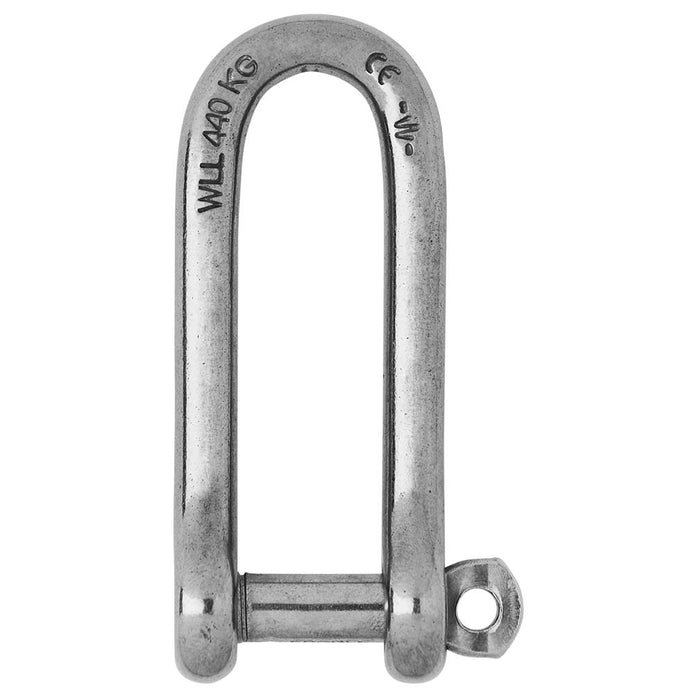

Captive Pin Long D Shackle - Diameter 10mm - 13/32"
Features:
- Captive pin long "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 3350
- WLL (lb) 2290
- Breaking load (lb) 11460
- Weight (lb) 0.388

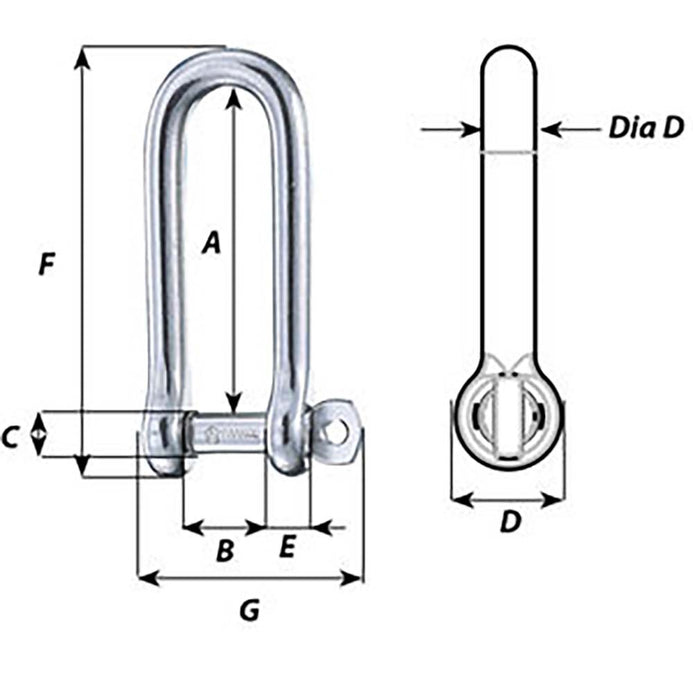

Dimensions (see 2nd image):
- A (inch) 3-5/64"
- B (inch) 25/32"
- C (inch) 7/16"
- D (inch) 53/64"
- D diameter (inch) 25/64"
- E (inch) 25/64"
- F (inch) 4-1/16"
- G (inch) 2-1/8"
Manufacturer : Wichard Marine
Manufacturer Part No : 01415
UPC : 768536014150
