Wichard Captive Pin Long D Shackle - Diameter 4mm - 5/32"
$40.98
You Save: (%)
This product was viewed times within last hour
Availability: In stock

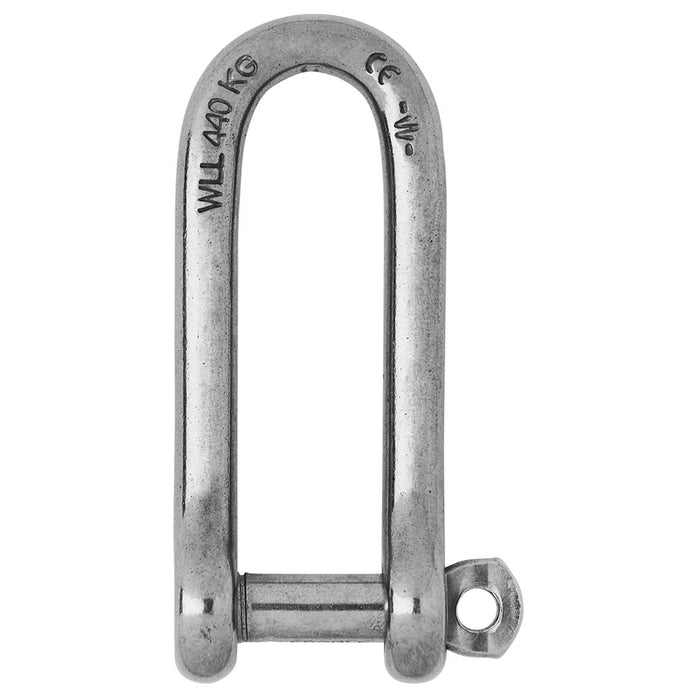

Captive Pin Long D Shackle - Diameter 4mm - 5/32"
Features:
- Captive pin long "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 700
- WLL (lb) 440
- Breaking load (lb) 2200
- Weight (lb) 0.026

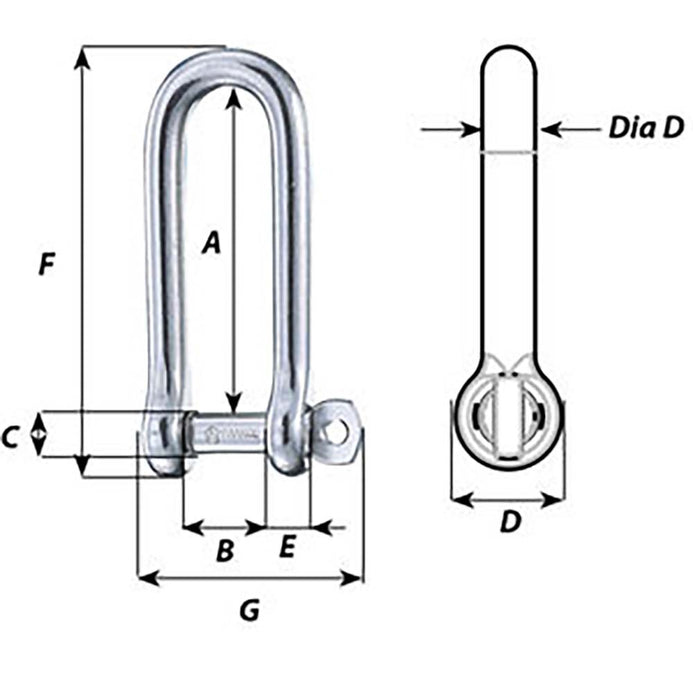

Dimensions (see 2nd image):
- A (inch) 1-7/32"
- B (inch) 5/16"
- C (inch) 13/64"
- D (inch) 23/64"
- D diameter (inch) 5/32"
- E (inch) 5/32"
- F (inch) 1-39/64"
- G (inch) 55/64"
Manufacturer : Wichard Marine
Manufacturer Part No : 01411
UPC : 768536014112
