Wichard Diamond Pad Eye - Square - 79mm Length (3-7/64") - M6 Screw
$62.98
You Save: (%)
This product was viewed times within last hour
Availability: In stock
Diamond Pad Eye - Square - 79mm Length (3-7/64") - M6 Screw
Features:
- Mechanical resistance versus corrosion resistance ratio
- Optimized dimensions
- For M6 screw
Applications:
- Mast foot blocks
- Reefing blocks
- Various fastenings
Specifications:
- Materials: Duplex stainless steel grade
- Working Load: (lb) 5950 / (kg) 2700
- Breaking Load: (lb) 16093.7 / (kg) 7300
- Weight: (lb) 0.32 / (g) 145
- W.L 1 (90 degrees): (lb) 6393.4 / (kg) 2900
- W.L 2 (45 degrees): (lb) 5732 / (kg) 2600
- W.L 3 (0 degrees): (lb) 5291 / (kg) 2400
- B.L 1 (90 degrees): (lb) 16093.7 / (kg) 7300
- B.L 2 (45 degrees): (lb) 15211.9 / (kg) 6900
- B.L 3 (0 degrees): (lb) 13889.1 / (kg) 6300

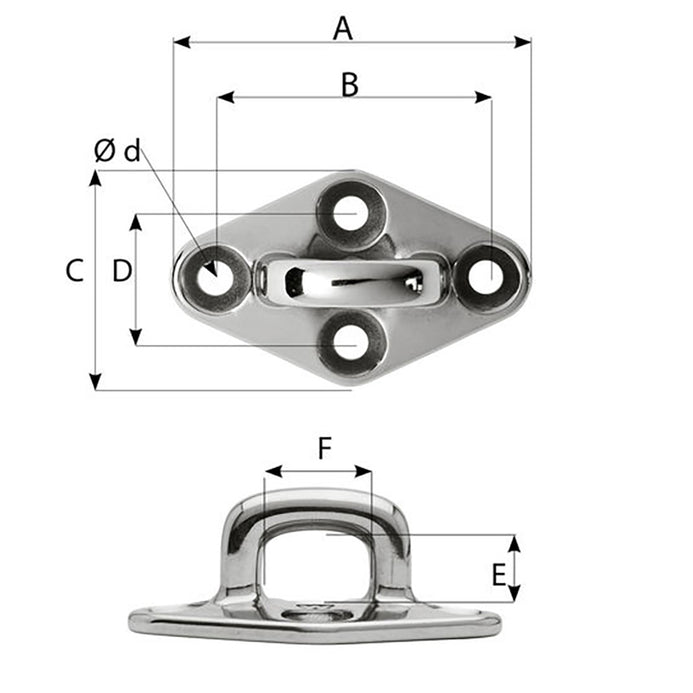

Dimensions:
- A: (inch) 3 7/64" / (mm) 79
- B: (inch) 2 23/64" / (mm) 60
- C: (inch) 1 31/32" / (mm) 50
- D: (inch) 1 17/64" / (mm) 32
- E: (inch) 39/64" / (mm) 15.5
- F: (inch) 55/64" / (mm) 22
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Manufacturer : Wichard Marine
Manufacturer Part No : 6655
