Wichard HR Bow Shackle - 10mm Pin Diameter
$166.98
You Save: (%)
This product was viewed times within last hour
Availability: In stock

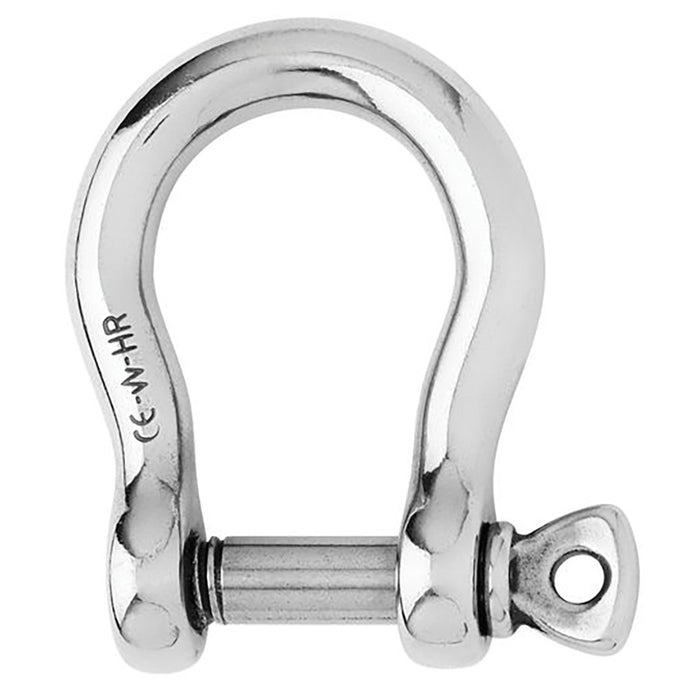

HR Bow Shackle - 10mm Pin Diameter
Features:
- Forged bow shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- To be used when ample room is required
- Possibility to attach several lines or cables
- Do not use for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 5820 / (kg) 2640
- WLL: (lb) 2640 / (kg) 1200
- Breaking load: (lb) 13220 / (kg) 6000
- Weight: (lb) 0.3 / (g) 136

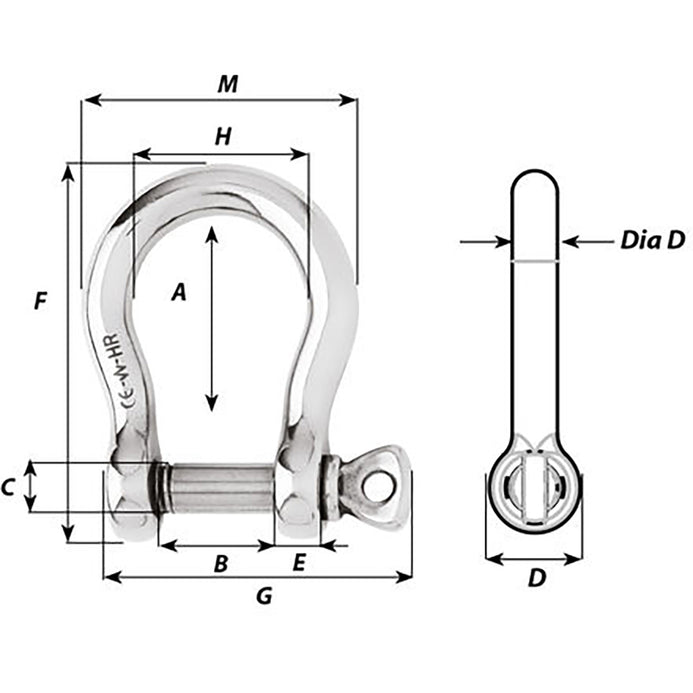

Dimensions:
- A: (inch) 1 27/32" / (mm) 47
- B: (inch) 55/64" / (mm) 22
- C: (inch) 25/64" / (mm) 10
- D: (inch) 25/32" / (mm) 20
- D diameter: (inch) 15/32" / (mm) 12
- E: (inch) 23/64" / (mm) 9
- M: (inch) 2 3/64" / (mm) 52
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Manufacturer : Wichard Marine
Manufacturer Part No : 11245
