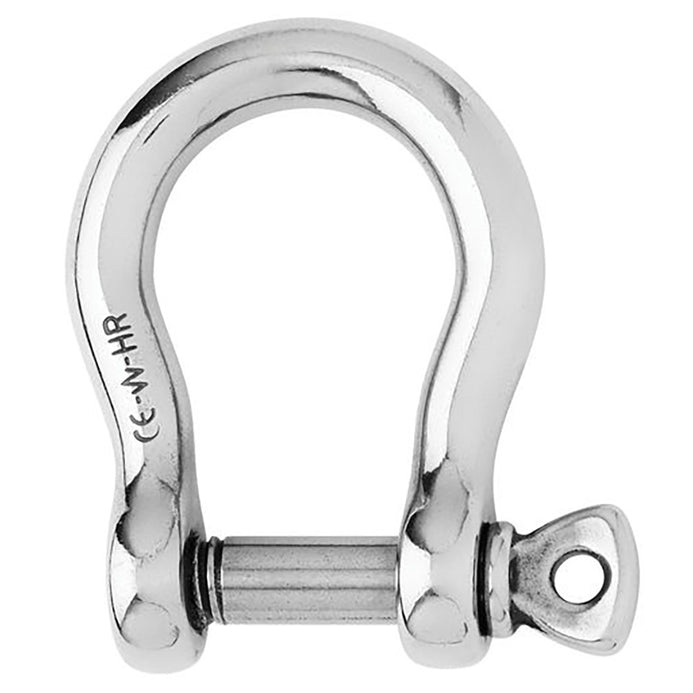

Wichard HR Bow Shackle - 12mm Pin Diameter
$266.98
You Save: (%)
This product was viewed times within last hour
Availability: Sold out
HR Bow Shackle - 12mm Pin Diameter
Features:
- Forged bow shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- To be used when ample room is required
- Possibility to attach several lines or cables
- Do not use for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 7930 / (kg) 3600
- WLL: (lb) 4400 / (kg) 2000
- Breaking load: (lb) 22040 / (kg) 10000
- Weight: (lb) 0.494 / (g) 224

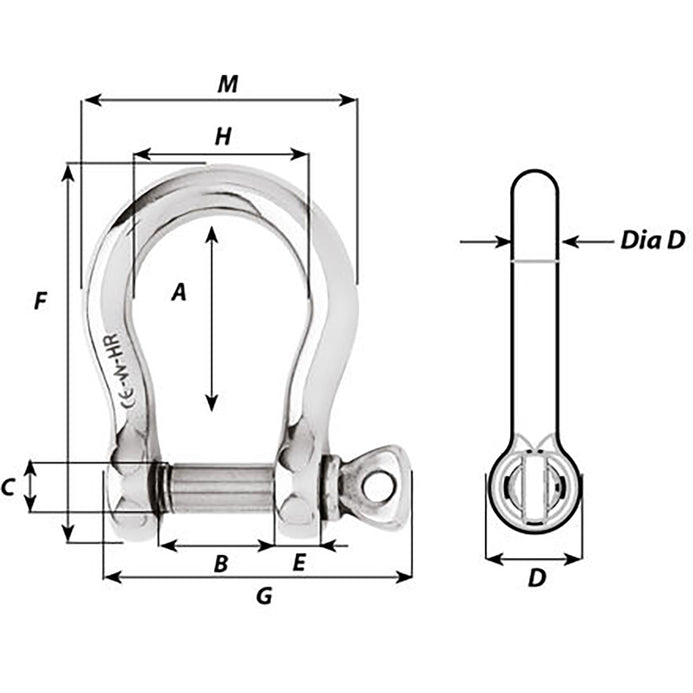

Dimensions:
- A: (inch) 2 11/64" / (mm) 55
- B: (inch) 15/16" / (mm) 24
- C: (inch) 15/32" / (mm) 12
- D: (inch) 15/16" / (mm) 24
- D diameter: (inch) 35/64" / (mm) 14
- E: (inch) 25/64" / (mm) 10
- M: (inch) 2 31/64" / (mm) 63
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
Manufacturer : Wichard Marine
Manufacturer Part No : 11246
