Wichard HR D Shackle - 14mm Diameter - 35/64"

Sold out
Sale
$416.98
You Save: (%)
This product was viewed times within last hour

Availability: Sold out

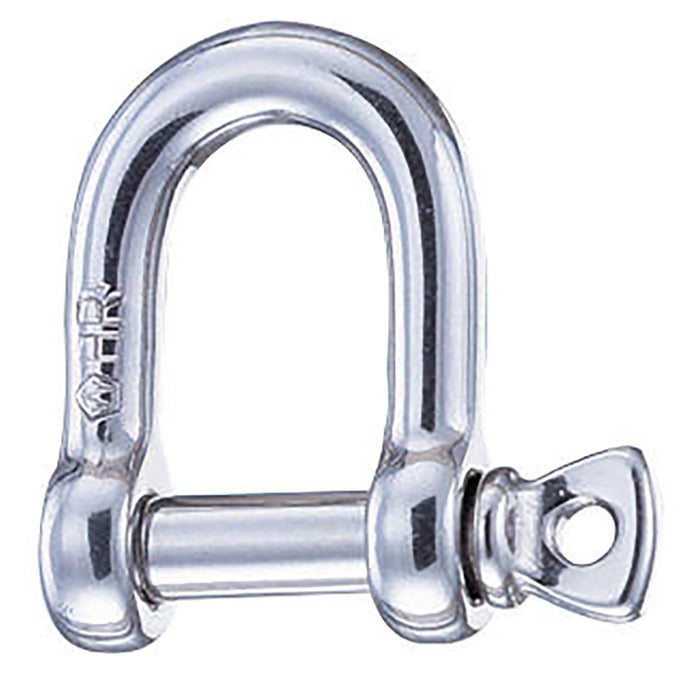

HR D Shackle - 14mm Diameter - 35/64"

Features:

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • Standard applications of the shackle
  • Attachment applications: blocks, head …
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 11280 / (kg) 5120
  • WLL: (lb) 5290 / (kg) 2400
  • Breaking load: (lb) 26450 / (kg) 12000
  • Weight: (lb) 0.67 / (g) 304

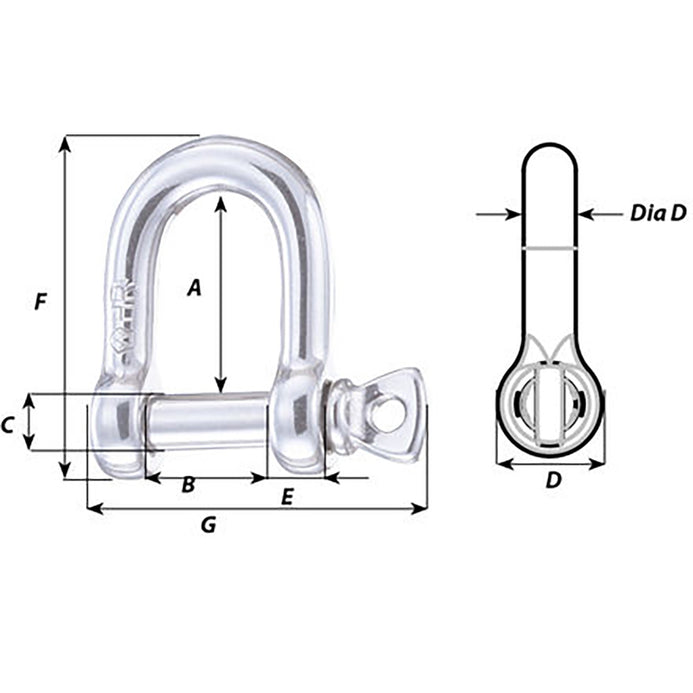

Dimensions:

  • A: (inch) 1 59/64" / (mm) 49
  • B: (inch) 1 7/64" / (mm) 28
  • D diameter: (inch) 35/64" / (mm) 14

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Manufacturer : Wichard Marine
Manufacturer Part No : 11207
