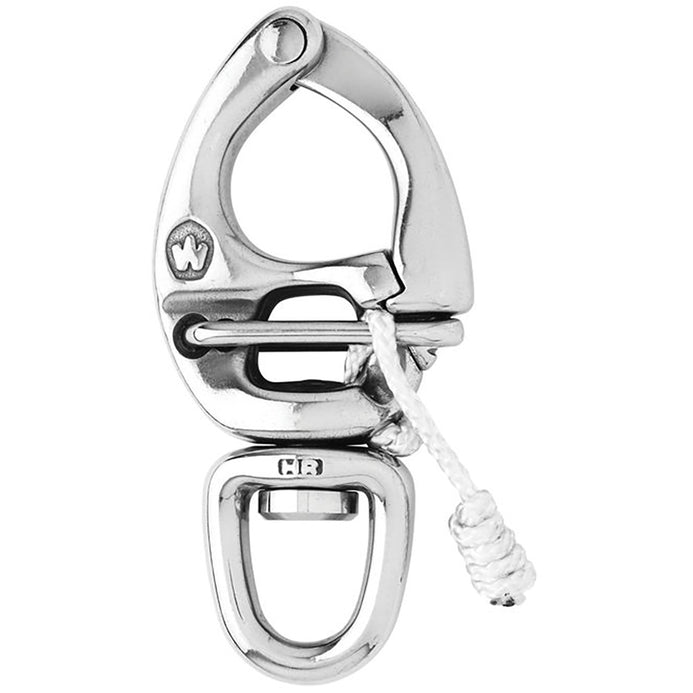

Wichard HR Quick Release Snap Shackle With Swivel Eye -110mm Length- 4-21/64"
$337.98
You Save: (%)
This product was viewed times within last hour
Availability: Sold out
HR Quick Release Snap Shackle With Swivel Eye -110mm Length- 4-21/64"
Features:
- HR forged (17.4 PH) quick-release snap shackle with swivel eye
- The opening is made by pulling the lanyard
- Perfect to attach one sheet or halyard
- Outstanding working and breaking loads
- Free rotation of the snap shackle thanks to the swivel
Applications:
- For spinnaker operations
- Perfect for spinnaker sheets and halyards
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 5290 / (kg) 2400
- Breaking load: (lb) 9250 / (kg) 4200
- Weight: (lb) 0.514 / (g) 233

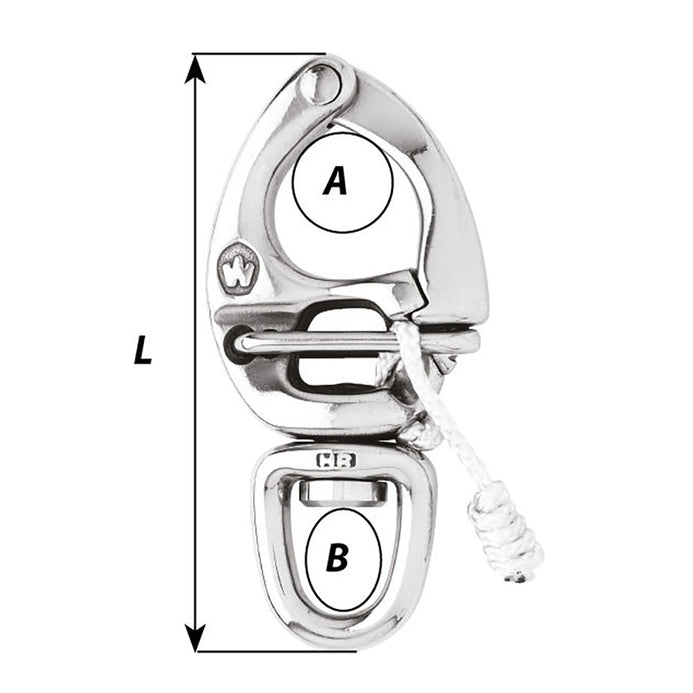

Dimensions:
- A: (inch) 63/64" / (mm) 25
- B: (inch) 5/8" / (mm) 16
- Length: (inch) 4 21/64" / (mm) 110
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Manufacturer : Wichard Marine
Manufacturer Part No : 02676
