Wichard HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16"

Sold out
Sale
$215.98
You Save: (%)
This product was viewed times within last hour

Availability: In stock

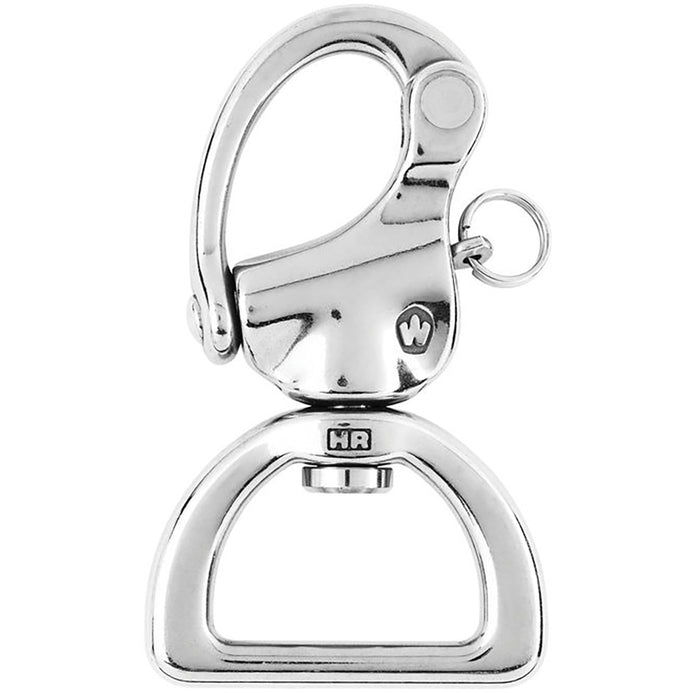

HR Snap Shackle Webbing Swivel - 100mm Length - 3-15/16"

Features:

  • HR Forged snap shackle (Grade 17.4 PH stainless steel) with webbing swivel.
  • Its flat design allows attaching a webbing
  • Free rotation of the snap shackle thanks to the swivel eye
  • The plunger pin is set captive into the hook and cannot become detached
  • Excellent working and breaking loads
  • Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

  • Snap shackle applications
  • Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 2820 / (kg) 1280
  • Breaking load: (lb) 8480 / (kg) 3850

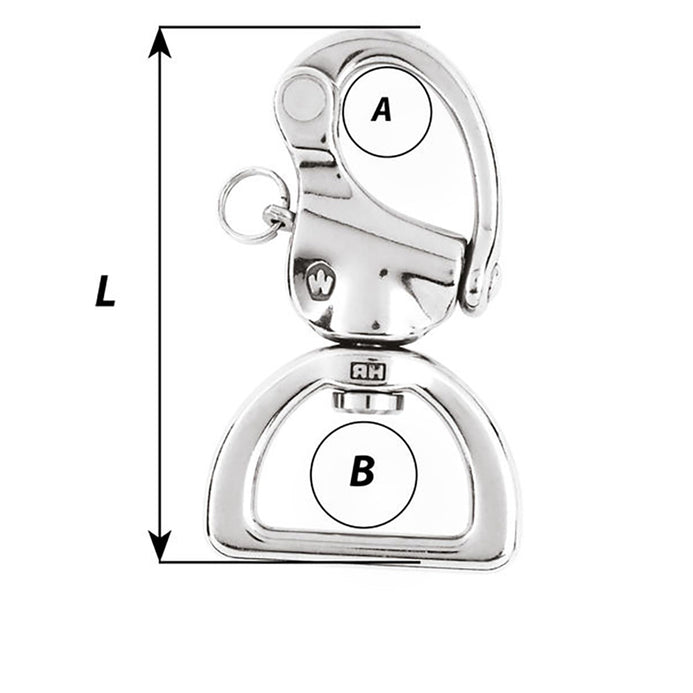

Dimensions:

  • A: (inch) 53/64" / (mm) 21
  • B: (inch) 1 37/64" / (mm) 40
  • Length: (inch) 3 15/16" / (mm) 100

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.  WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Manufacturer : Wichard Marine
Manufacturer Part No : 02376
